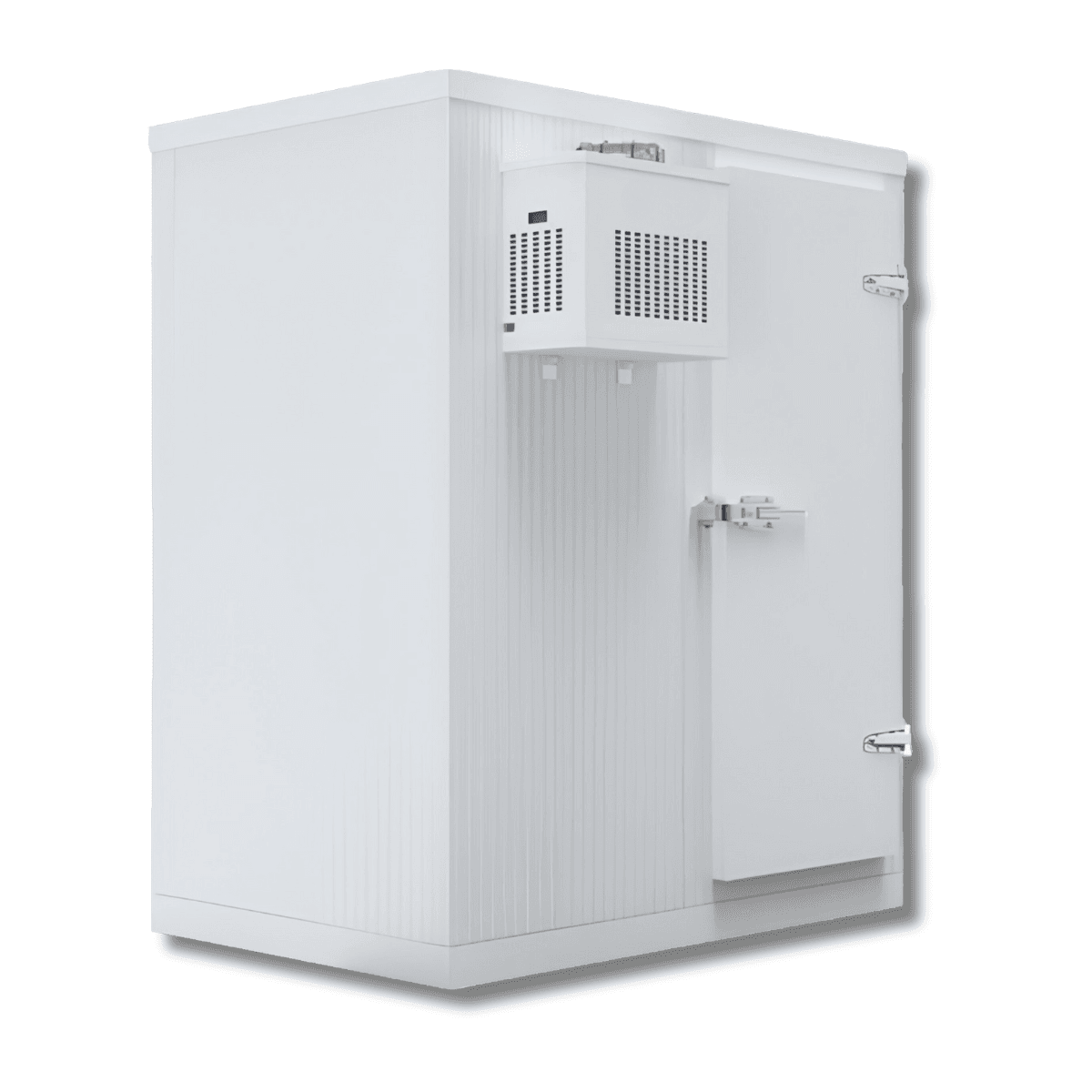

ODIS COLD ROOM
ODIS COLD ROOM
Features
- Volume Options – 4.75m³ to 11.13m³
- Low Operating Noise
- Energy-Efficient Inverter Technology
- Pre-charged with R404A Refrigerant
- High-density PU Insulated Panels
- Smart Reverse Cycle Defrost System
- Dual Temperature Function – Chiller (0ºC to 7ºC) or Freezer (-1ºC to -18ºC)
Download brochure
Specifications
SYSTEM
- Cooling Capacity: 1350W
- Power Supply: 220–240V, 50/60Hz
- Max. Power Input: 1100W
- Rated Current: 6.1 Amps
- Refrigerant Type & Quantity: R404A / 1.2kg
- Outdoor Resistance Class: IP20
CONDENSING UNIT
- Weight: Approx. 259kg (Total System Weight)
- Power Input: 1100W
- Fans: 1 EC Condenser + 1 EC Evaporator
- Sound Level: Low-Noise Operation
- Controls: Electronic Expansion Valve with Superheat Controller
- Plug & Play: 3m Cable with AU Plug
ROOM PANEL & STRUCTURE
- Panel Type: PU Sandwich Panel
- Panel Thickness: 100mm
- Material: 0.526mm Colour Steel (Both Sides)
- Panel Density: 40kg/m³
- Door Type: Swing Door with Cam Lock
- Colour: Contemporary Off-White
- Warranty: 2 Years
