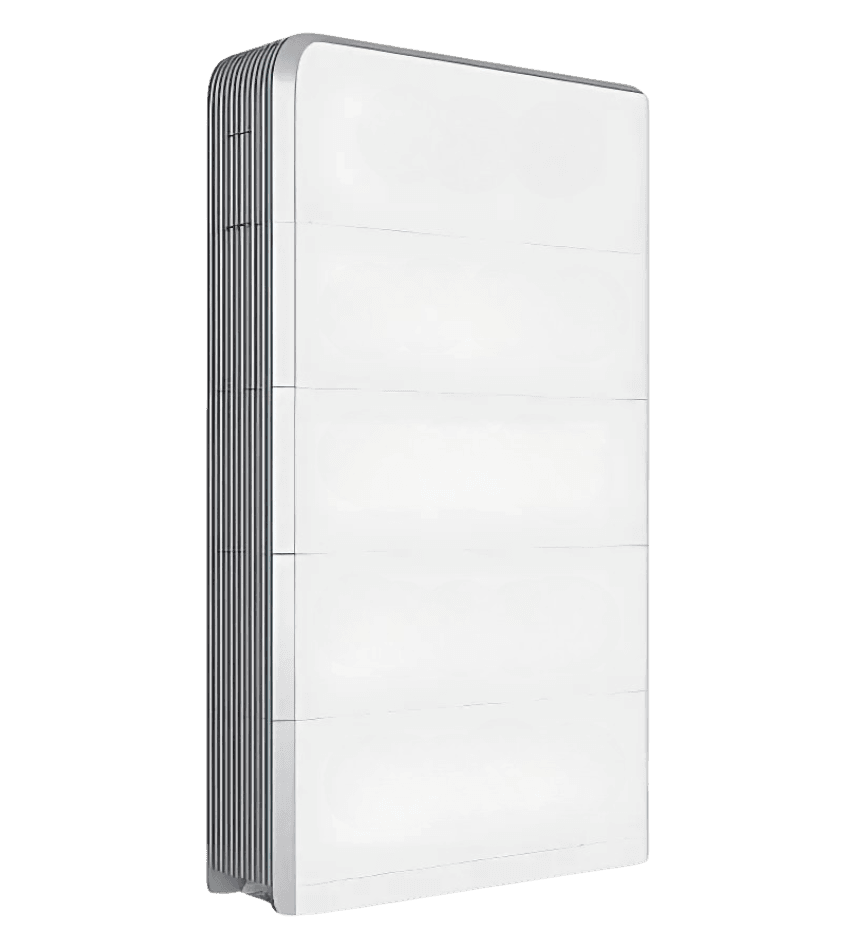

Sigenergy SigenStor Energy Controller
Sigenergy SigenStor Energy Controller
Take control of your solar and battery system with the Sigenergy SigenStor Energy Controller. Designed for both residential and commercial applications, this all-in-one smart energy controller offers advanced EMS-integrated management, seamless grid and backup power switching, and maximum solar utilisation. With flexible sizing from 5kW to 30kW and support for Sigenergy’s modular batteries, it’s a future-proof choice for modern energy independence.
Features
- Modular Design, available in 5.0 kWh and 8.0 kWh units
- Scalable Storage – Build from 5.0 kWh up to 48.0 kWh
- Seamless Integration
- Safe & Reliable
- Optimised for deep cycling and long service life
- All-Weather Performance
Download brochure
Specifications
Single-Phase Models (EC 5.0 SP – 12.0 SP)
- Nominal Output Power: 5kW – 12kW
- PV Input: Up to 24,000 W, 600 V max
- Efficiency: Up to 98.0%
- MPP Trackers: Up to 4
- Battery Modules: 1–6 × SigenStor BAT 5.0 / 8.0 (300–600 V)
Three-Phase Models (EC 5.0 TP – 30.0 TP)
- Nominal Output Power: 5kW – 30kW
- PV Input: Up to 48,000 W, 1100 V max
- Efficiency: Up to 98.4%
- MPP Trackers: Up to 4
- Battery Modules: 1–6 × SigenStor BAT 5.0 / 8.0 (600–900 V)
Common Features
- Operating Temp: –30 °C to +60 °C
- Altitude: Up to 4000 m
- Ingress Protection: IP66
- Standards Compliance: IEC/EN 62109, IEC/EN 62477, AS 4777
- Communication: WLAN / Fast Ethernet / RS485 / 4G (optional)
