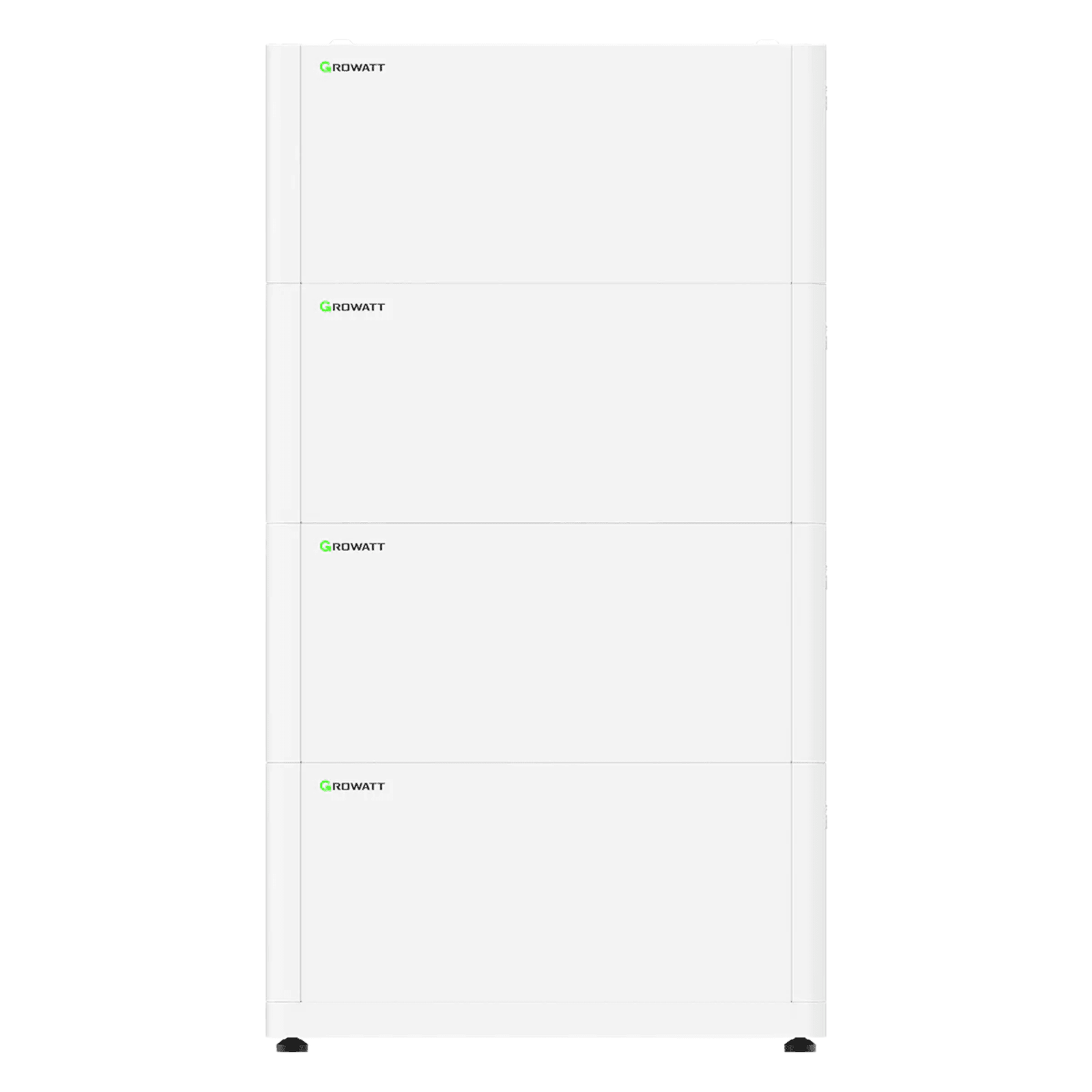

Growatt ALP LV Battery System
Growatt ALP LV Battery System
The Growatt ALP LV Battery System is a flexible and scalable low-voltage energy storage solution designed to maximise your solar investment. Built with advanced cobalt-free LiFePO₄ battery technology, the ALP LV series delivers exceptional safety, reliable performance, and modular expansion to suit a wide range of residential energy storage applications
Features
- Flexible battery capacities from 5 kWh to 40 kWh
- Advanced cobalt-free LiFePO₄ (LFP) battery technology
- Supports wall-mounted or floor-mounted installation
- Expandable up to 8 battery packs in parallel
- Natural cooling for quiet and efficient operation
- High safety with internationally certified battery technology
- Ideal for residential solar energy storage and backup applications
Download brochure
Specifications
Product Highlights
- Battery Capacity Range: 5 kWh – 40 kWh
- Usable Capacity Range: 4.6 kWh – 36.8 kWh
- Battery Type: LiFePO₄ (LFP)
- Nominal Voltage: 51.2 V
- Operating Voltage Range: 46.4 – 57.6 V
- Depth of Discharge (DoD): 90%
- Maximum Power: Up to 6.2 kW
- Rated Current: 75 A (5 kWh), 100 A (10–40 kWh)
- Maximum Current: 90 A (5 kWh), 125 A (10–40 kWh)
- Operating Temperature: -10°C to +50°C
- Cooling Method: Natural Cooling
- Ingress Protection: IP66
- Installation Options: Floor-mounted or Wall-mounted (Maximum 2 stacked on wall)
- Scalability: Up to 8 battery packs in parallel
- Rated Power: 3.7 kW (5 kWh model), up to 5 kW (10–40 kWh models)
