Neovolt BW-BAT-9.6P Battery

Neovolt BW-BAT-9.6P Battery

Thumbnail of

Neovolt BW-BAT-9.6P Battery

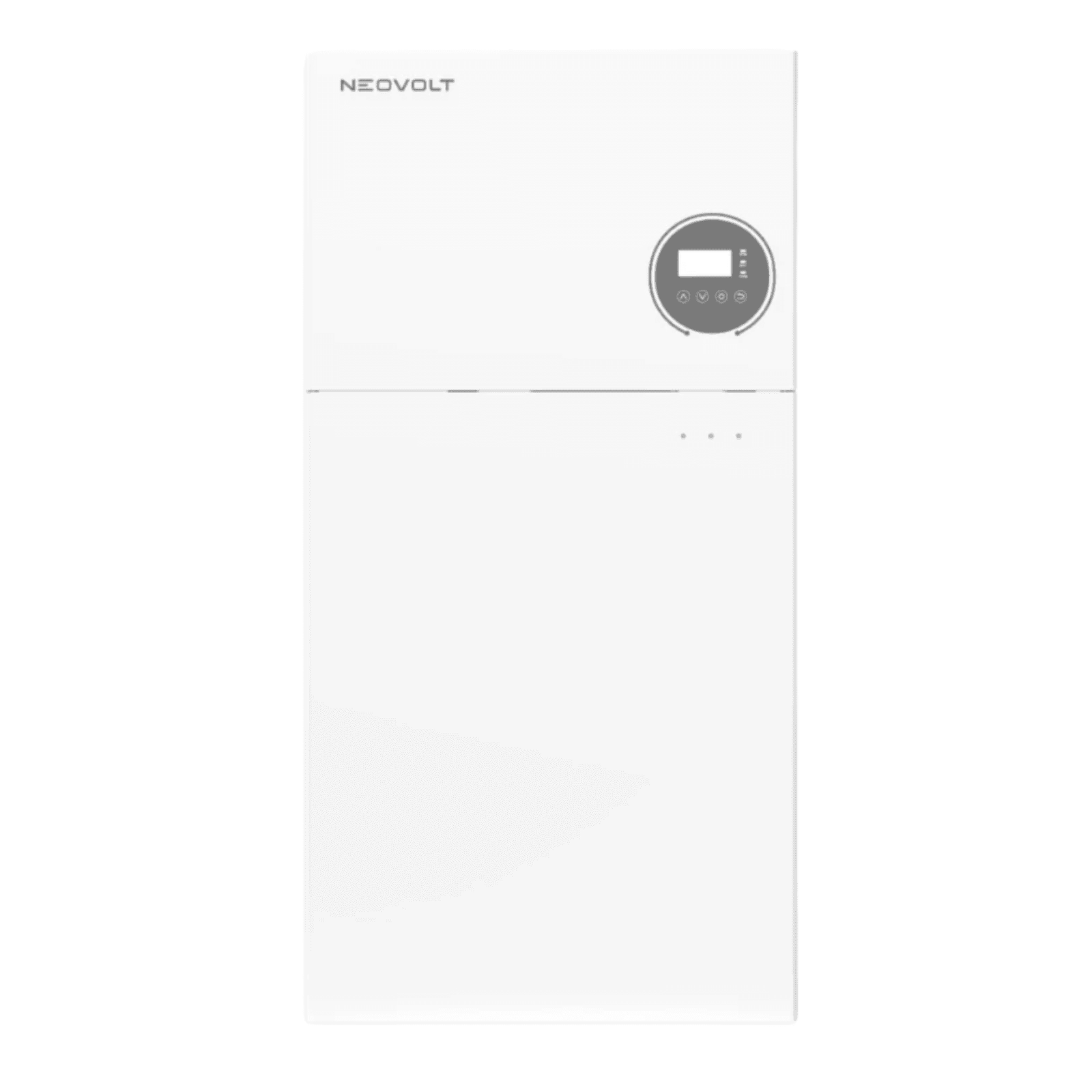

The Neovolt BW-BAT-9.6P is a smart and reliable residential energy storage solution designed to help homeowners maximise solar self-consumption and improve energy independence. Built with advanced LiFePO₄ battery technology, this battery system delivers dependable performance, strong safety protection, and intelligent energy management for modern solar installations. With expandable capacity options and built-in online monitoring capabilities, the Neovolt battery system is ideal for households looking for scalable backup storage with efficient day-to-day operation.

Features

  • Advanced LiFePO₄ battery technology
  • Online cycle lifetime forecasting
  • Remote monitoring
  • Multi-layer safety protection
  • Hardware and firmware safeguards
  • Ventilated-level redundant protection design
  • Supports parallel and series connections for flexible system sizing
  • IP65-rated protection suitable for indoor and outdoor installations
  • Compatible communication protocols: CAN / RS485
  • Long cycle life of up to 8000 cycles
ENQUIRE NOW
download Download brochure

Specifications

Product Highlights

  • Model: BW-BAT-9.6P
  • Battery Capacity: 9.6 kWh
  • Usable Capacity: 9.1 kWh
  • Depth of Discharge (DoD): 95%
  • Battery Type: LiFePO₄ (LFP)
  • Nominal Voltage: 96 V
  • Operating Voltage Range: 90–108 V
  • Cycle Lifetime: 8000 cycles
  • Max Charging Current: 50 A
  • Max Discharging Current: 50 A
  • Relative Humidity: 0–95% (No Condensing)
  • Weight: 86 kg
  • Dimensions (W/H/D): 590 × 730 × 205 mm
  • Ingress Protection: IP65
  • Communication: CAN / RS485 (Optional)
  • Expandable Capacity Range: 9.6 / 19.2 / 28.8 / 38.4 / 48.0 / 57.6 kWh
